FRP Oxygen Cone Supplies More Dissolved Oxygen for Fish Farming
FRP Oxygen Cone
FRP Oxygen Cone Supplies More Dissolved Oxygen for Fish Farming

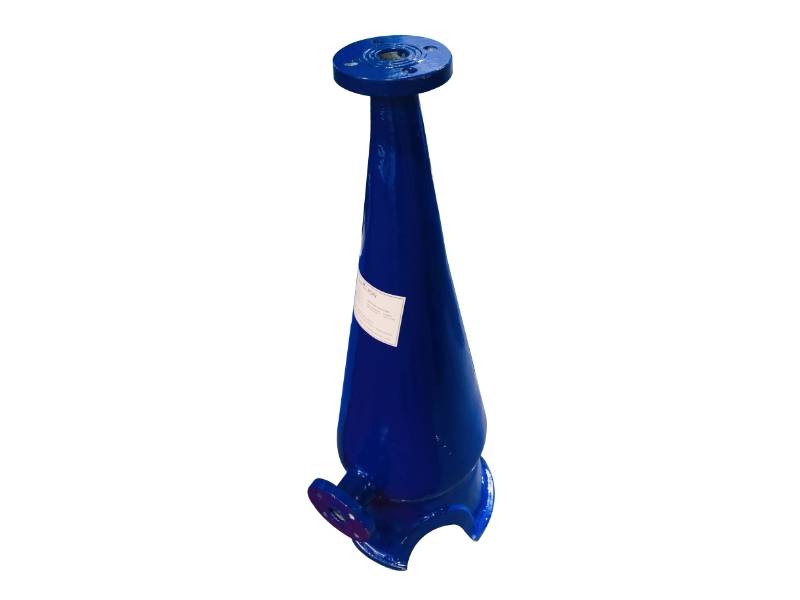

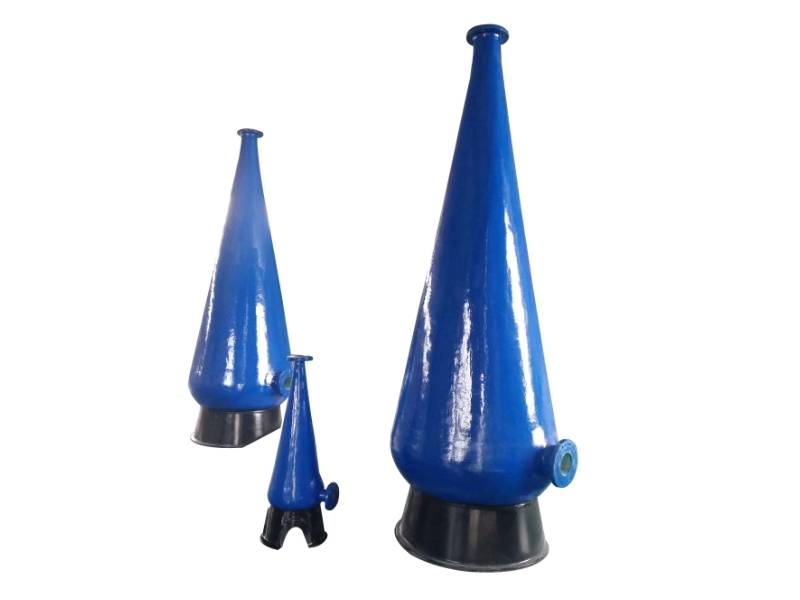

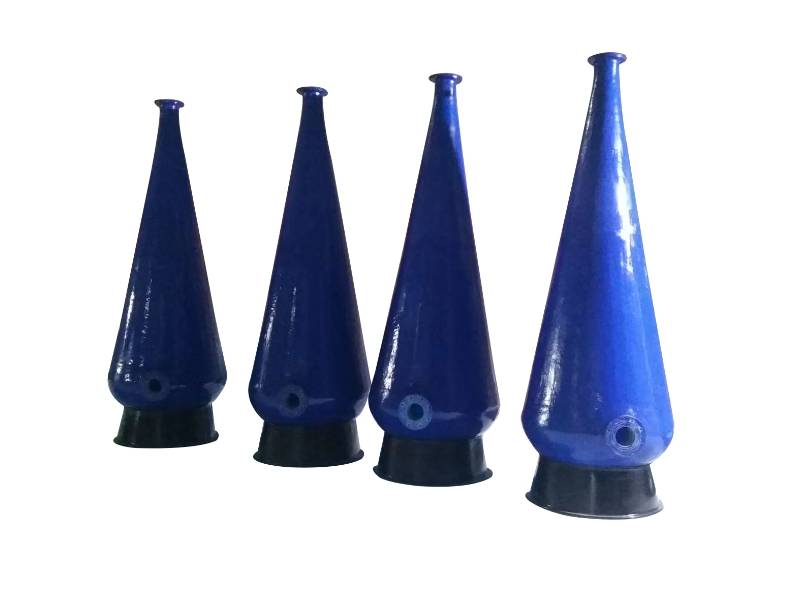

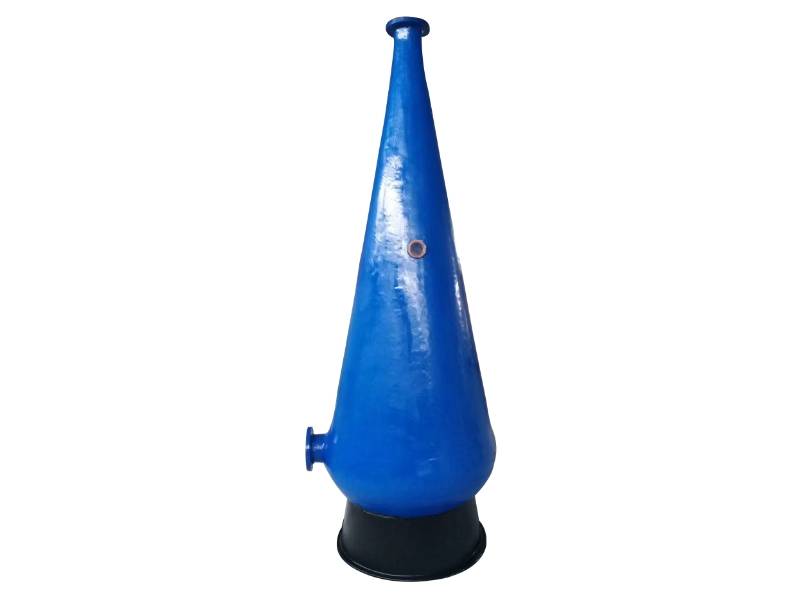

FRP Oxygen cone also called aeration cone, is a aeration equipment specially designed for industrial aquaculture. The whole body is made by high strength FRP, which has obviously better aeration effect than other materials. To be used with pure oxygen generator (or oxygen cylinder) and other recirculating aquaculture relative equipment, it supplies more dissolved oxygen for intensive fish farming.
- Model: CD50, CD80, CD100, CD125, CD150
- Testing pressure: 0.4 MPa
- Working pressure: 0.25MPa
- Can be used in weakly corrosive liquid environments such as sea water
Details
Specification
| Model | Dimension (mm) | Inlet/Outlet Flange Diameter (mm) | Design Maximum Flow (T/H) | Measure Air Pressure (PSI) | Dissolved Oxygen Rate in 20 °C (kg/H) | Dissolved Oxygen Concentration of Outlet Water (mg/L) |
|---|---|---|---|---|---|---|
| CD50 | φ400*1130 | 63 | 18 | 20 | 1 | 65 |
| CD80 | φ600*1730 | 90 | 30 | 10 | 1.2 | 49 |
| 15 | 1.4 | 56 | ||||
| 20 | 1.6 | 64 | ||||
| CD100 | φ900*2130 | 110 | 60 | 10 | 2.4 | 50 |
| 15 | 2.8 | 57 | ||||
| 20 | 3.3 | 65 | ||||
| CD125 | φ1000*2720 | 140 | 110 | 10 | 4.5 | 50 |
| 15 | 5.3 | 58 | ||||
| 20 | 6.1 | 65 | ||||
| CD150 | φ1200*3280 | 160 | 140 | 10 | 5.6 | 50 |
| 15 | 6.6 | 58 | ||||
| 20 | 7.7 | 65 |
