Winder 2.5" FRP RO Membrane Housing – 300/1000 PSI, End Port

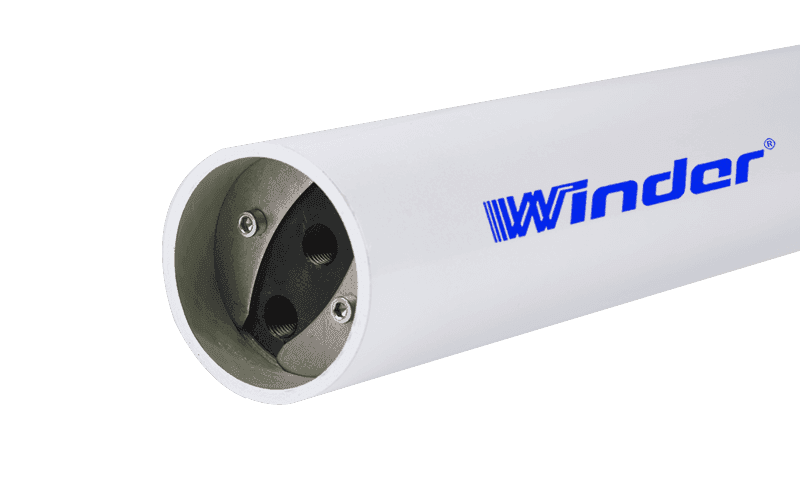

White membrane housing with 2.5" inner diameter made in Winder.

2.5" FRP membrane housing

Winder^® 2.5" FRP RO membrane housings are widely used in reverse osmosis water treatment system. 300 PSI to 1000 PSI, end port for 2514, 2521, 2540 membranes.

Winder FRP RO housing since 2006:

100% quality assurance test with 1.1 times of working pressure maintained for at least five minutes, we could guarantee the safety and no leakage. Not sampling test.
Quality Assurance
- Burst test with 6 times of its design pressure;
- 100000 times cycle test.
Warranty
- Two years warranty for housing body against industry defects;
- One year warranty for spare parts.

Winder^® series FRP membrane housings are applicable to multiple standard membrane element, E.g. Filmtec, Hydranautics, Osmonics, Koch, Toray, CSM, Vontron and BDX, etc.

Products

2.5 Inch End Port

300 PSI
2.1 MPa

1000 PSI
6.9 MPa

Drawing

Feature

Composite construction is anti-wearable.
Test every membrane housing, not sampling.
Electrically non-conductive.
Resistance to corrosion, oxidation & aging.
Well heat-insulting property.
High sealing pressure performance.
Mirror inner wall and brightly surface.
Standard and non-standard are all available.

Components

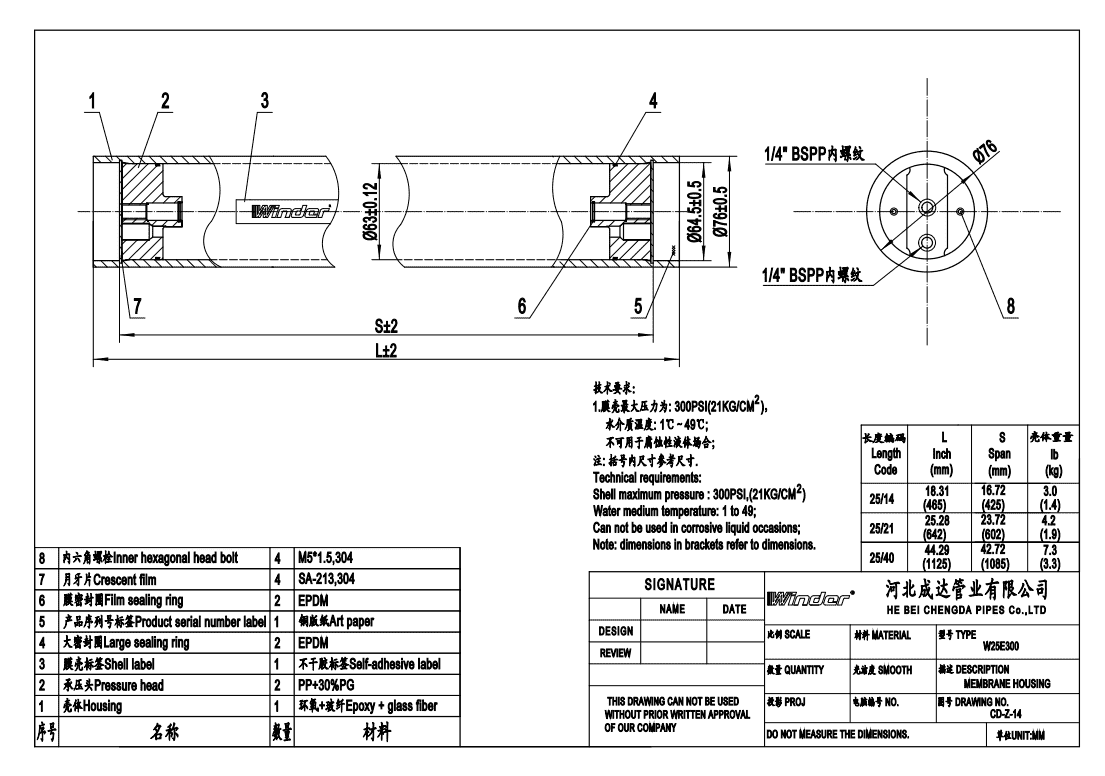

W25E300

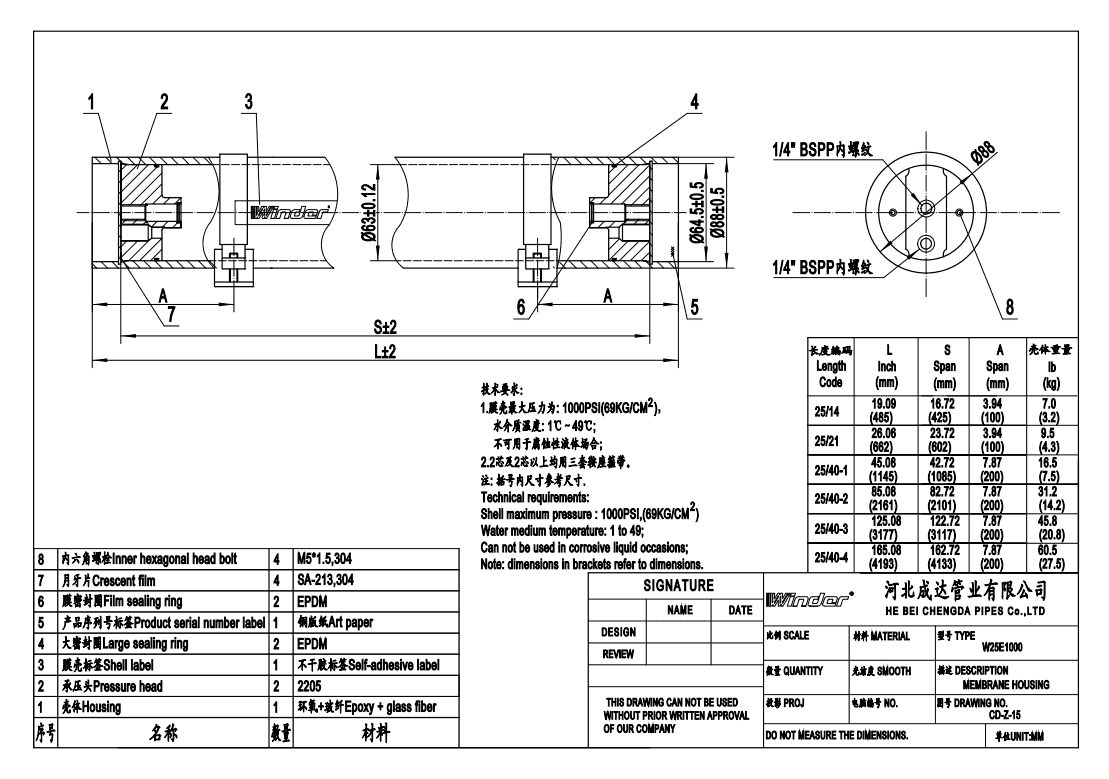

W25E1000

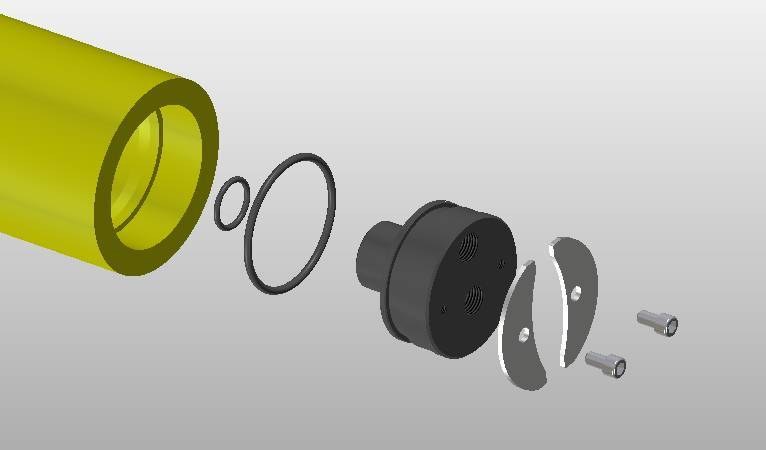

Component assembly diagram of 2.5 " end entry

Components assembly diagram of 2.5" FRP membrane housing.

Winder FRP membrane housing W25E300 components 300 psi.

Inner hexagonal head bolt
Crescent film
Pressure head
Sealing rings

Component assembly diagram of 2.5 " end entry

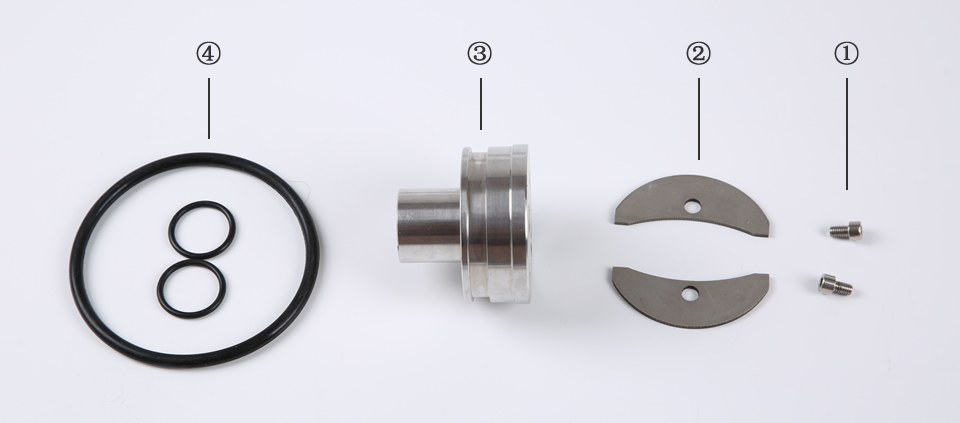

Winder FRP membrane housing W25E1000 components 1000 psi.

Inner hexagonal head bolt
Crescent film
Pressure head
Sealing rings

Specification

Specification of 2.5" FRP Membrane Housing
Model No.	Design pressure (PSI)	Operating temperature	Connection	Element length
W2514E300	300	-10 °C–49 °C	End port	14" × 1
W2521E300	300	-10 °C–49 °C	End port	21" × 1
W2540E300	300	-10 °C–49 °C	End port	40" × 1
W2514E1000	1000	-10 °C–49 °C	End port	14" × 1
W2521E1000	1000	-10 °C–49 °C	End port	21" × 1
W2540E1000	1000	-10 °C–49 °C	End port	40" × 1

Application

2.5" FRP membrane housing is professional for industrial waste water treatment, seawater desalination, brackish water desalination, watermaker RO systems on boat and yacht, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.
