HomeProductsWinder Series8" FRP Membrane Housing

Winder 8" FRP RO Membrane Housing, 300-2000 PSI, End Port/Side Port

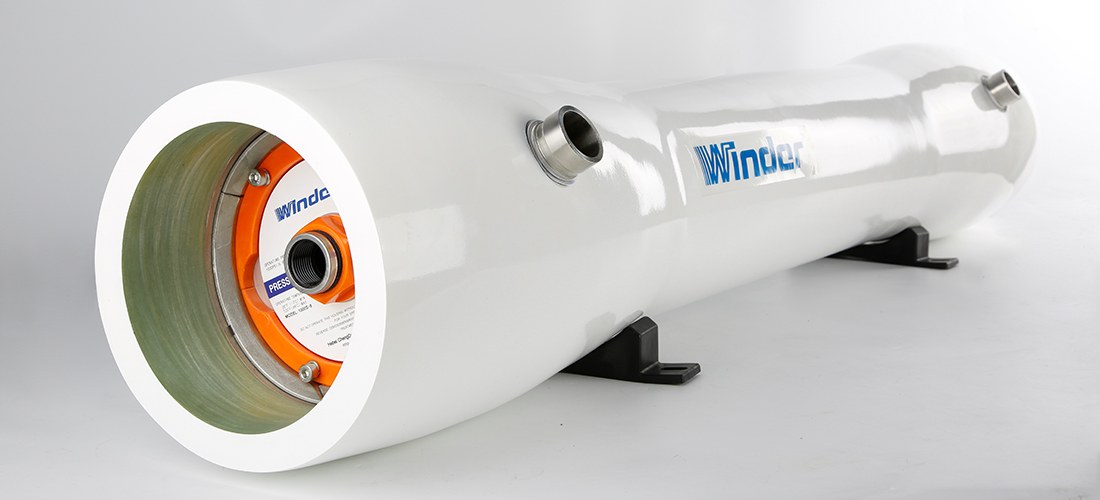

White membrane housing with 8" inner diameter made in Winder.

8" FRP membrane housing

Winder® 8" FRP RO membrane housings working pressure widely ranges from 150 PSI to 1200 PSI, side port or end port.

Winder FRP RO housing since 2006:

  • 100% quality assurance test with 1.1 times of working pressure maintained for at least five minutes, we could guarantee the safety and no leakage. Not sampling test.
  • Quality Assurance
    • Burst test with 6 times of its design pressure;
    • 100000 times cycle test.
  • Warranty
    • Two years warranty for housing body against industry defects.
    • One year warranty for spare parts.

Winder® series FRP membrane housings are applicable to multiple standard membrane elements, E.g. Filmtec, Hydranautics, Osmonics, Koch, Toray, CSM, Vontron and BDX, etc. And non-standard products could be tailor-made to meet the satisfaction of your special projects.

Tools: End cap extractor.

Product Center

  • 8 Inch End Port
  • 8 Inch Side Port
W80E300
W80E450
W80E600
W80E1000
W80E1200

W80E300

W80E450

W80E600

W80E1000

W80E1200

W80S300
W80S450
W80S600
W80S1000
W80S1200
W80S1500
W80S1800
W80S2000

W80S300

W80S450

W80S600

W80S1000

W80S1200

W80S1500

W80S1800

W80S2000

Feature

  • Composite construction is anti-wearable.
  • Test every membrane housing, not sampling.
  • Multi-porting option.
  • Electrically non-conductive.
  • High sealing pressure performance.
  • Unique quick locking system.
  • Mirror inner wall and brightly surface.
  • Standard and non-standard are all available.

Application

8" FRP membrane housing is professional for industrial waste water treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.
