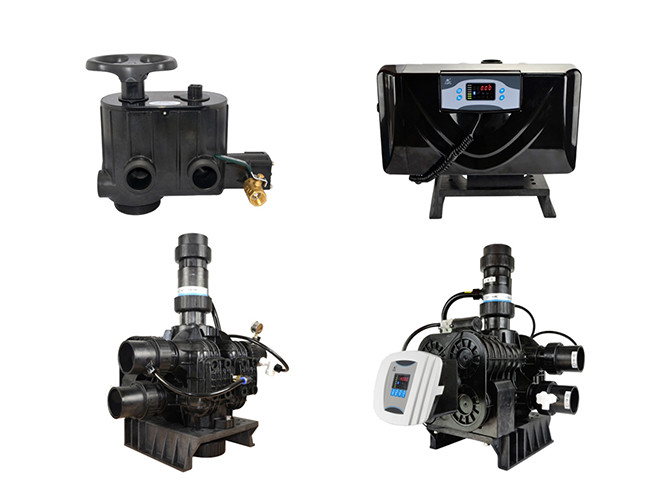

Runxin Control Valves – Specially Designed for Floating Bed
In some hard water treatment, floating bed has its significant advantages, such as high operating flow rate, high output, low specific consumption of regenerant, good effluent quality, simple structure of the body equipment, easy operation, etc.
According to the principle of floating bed operation, the Runxin floating bed series control valves can be well adapted to water softening and improve softening efficiency.
Table 1: Popular Models & Data Sheet of Runxin Floating Bed Control Valves
| Model | Water Capacity | Running Model | Regeneration Type | Mount Type | Inlet/Outlet | Drain | Brine Tank Connector | Base | Riser Pipe | Available Tank Size | Working Pressure | Water Temperature | Turbidity | Input Charge | Output Charge |
| 93504 (F83A1) | 4 m3/h | Time Clock | Upflow | Top Mount | 1"M | 1/2"M | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 10"–14" | 0.15–0.6 MPa | 5–45 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 93604 (F83A3) | Meter | ||||||||||||||
| 93606 (F98C) | 6 m3/h | Meter | Upflow | Side Mount | 1"M | 3/4"M | 1/2"M | - | Side mount, top and bottom distributor 1"M | 14"–16" | 0.2–0.6 MPa | 5–50 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | DC 24V/1.5A |
| 93610 (F88C) | 10 m3/h | Meter | Upflow | Side Mount | 1.5"M | 1"M | 1/2"M | - | Side mount, top and bottom distributor 1.5"M | 20"–21" | 0.2–0.6 MPa | 5–50 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | DC 24V/1.5A |
| 91215 (F77CS) | 15 m3/h | Manual Softener | Upflow | Top/Side Mount | 2"M | 2"M | 3/4"M | 4"-8UN | 1.5"D-GB | 20"–30" | 0.2–0.6 MPa | 5–50 °C | < 2 FTU | - | - |
| 93520 (F95C1) | 20.5 m3/h | Time Clock | Upflow | Side Mount | 2"M | 1.5"M | 3/4"M | - | Side mount, top and bottom distributor 2"M | 20"–30" | 0.2–0.6 MPa | 5–50 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | DC 24V/1.5A |
| 93620 (F95C3) | Meter | ||||||||||||||
| 91240B (F112CS) | 40 m3/h | Manual Softener | Upflow | Side Mount | DN65 | DN65 | 3/4"M | - | Side mount, top and bottom distributor DN80 | 36"–40" | 0.2–0.6 MPa | 5–50 °C | < 2 FTU | - | - |
| 93640B (F112C3) | 40 m3/h | Meter | Upflow | Side Mount | DN65 | DN65 | 3/4"M | - | Side mount, top and bottom distributor DN80 | 36"–40" | 0.2–0.6 MPa | 5–50 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | AC 100V – 240V 50–60 Hz |
Features
●Hermetic head faces structure (F112 has piston structure)
●One valve on twin tanks, one in service, the other standby.(F88 and F98)
●F83, F77CS and F112CS are hard water for regeneration, others are soft water for regeneration.
●Adopt the technological process of up-flow service --brine draw--brine refill--fast rinse
Applications
●Suitable for high hardness(Less than 15mmol/L) water treatment applications.
